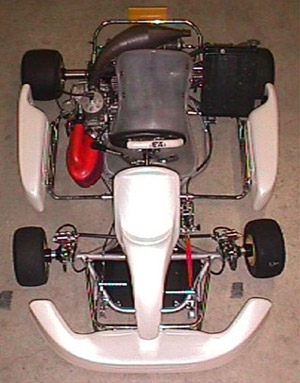

EA 555
Chassis Name: Enzo Evolution
Chassis Type: Sprint
Chassis Application: 125cc Shifterkart
Frame Rail Diameter: 30 mm
Available Axle Sizes: 50mm
Brake Type: E.A. Hydraulic Self Adjusting 4 piston
Brake Mfg; E.A.
Front Brakes; yes
Torsion Bar: Rear torsion bar removable
Front End Handling adjustment; Ride height, caster, camber, toe
Wheels - mfg, style, material; E.A. magnesium
Overall length - bumper to bumper; 186cm
Front end width - kingpin to kingpin; 66 cm
Rear Width - outside Frame rails; 64.5cm
Wheelbase; 1040mm
Radiator – Any size and type;
Fuel Tank Capacity; 8 Litre
Steering wheel; 320mm embroidered E.A
Seat; Fiberglass
Recommended Tire type; any
Bodywork Styles: CIK-approved
Other Standard Features: Complete Decal Package
Suggested Retail Price : $4400.00 cad.

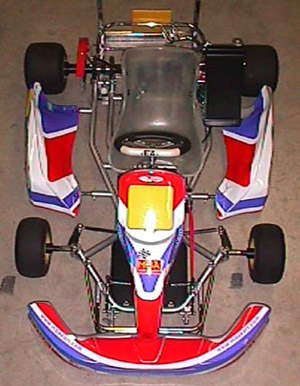

EA 435 100cc Tag
Chassis Name: Enzo Evolution
Chassis Type: Sprint
Chassis Application: 100cc Tag
Frame Rail Diameter: 32 mm
Available Axle Sizes: 50mm
Brake Type: E.A. Hydraulic Self Adjusting 4 pistons
Brake Mfg; E.A.
Front Brakes; No
Torsion Bar: Rear torsion bar removable
Front End Handling adjustment; Ride height, caster, camber, toe
Wheels - mfg, style, material; E.A. magnesium
Overall length - bumper to bumper; 186cm
Front end width - kingpin to kingpin; 66 cm
Rear Width - outside Frame rails; 64.5cm
Wheelbase; 1040mm
Radiator – Any size and type;
Fuel Tank Capacity; 8 Litre
Steering wheel; 320mm embroidered E.A
Seat; Fiberglass
Recommended Tire type; any
Bodywork Styles: CIK-approved
Other Standard Features: Complete Decal Package,
Suggested Retail Price: $3400.00 CAD.

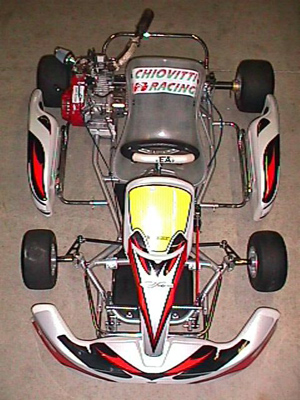

MBA 4 Cycle
Chassis Name: Enzo Evolution
Chassis Type: Sprint
Chassis Application: 4 cycle
Frame Rail Diameter: 30 mm
Available Axle Sizes: 40mm x 1000
Brake Type:   E.A. Hydraulic Self Adjusting 4 pistons
Brake Mfg; E.A.
Front Brakes; No
Front End Handling adjustment; Ride height, caster, camber, toe
Wheels - mfg, style, material; E.A. magnesium
Overall length - bumper to bumper; 186cm
Front end width - kingpin to kingpin; 66 cm
Rear Width - outside Frame rails; 64.5cm
Wheelbase; 102mm
Radiator – “not required”
Fuel Tank Capacity; 8 Litre
Steering wheel; 320mm embroidered MBASeat;  Fiberglass
Recommended Tire type; any
Bodywork Styles:   CIK-approved Unico
Other Standard Features:  Complete Decal Package


SQ 125 Tag Package / Complete with Engine
Chassis Name: SQ 125
Chassis Type: Tag
Chassis Application: Sprint
Frame Rail Diameter: 32mm
Available Axle Sizes: 50mm
Brake Type: Hydraulic
Brake Mfg: SQ
Front Brakes: YES
Torsion Bar: Removable Front and Side
Front End Handling adjustment; Ride height, caster, camber, toe
Wheels: Aluminum
Overall length - bumper to bumper; 186cm
Front end width - kingpin to kingpin; 66 cm
Rear Width - outside Frame rails; 64.5cm
Wheelbase; 1040mm
Radiator – Standard;
Fuel Tank Capacity; 8 Litre
Steering wheel; 320mm
Seat; Fiberglass
Recommended Tire type; Any
Bodywork Styles: Stilo
Suggested Retail Price; $3295.00 CAD.

F125 Front Brake
